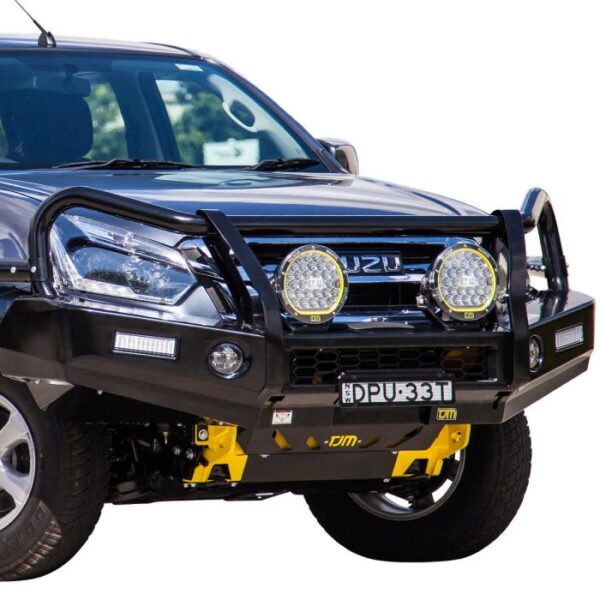

TJM Outback Steel Bull Bar – Isuzu D-MAX 2017-2020

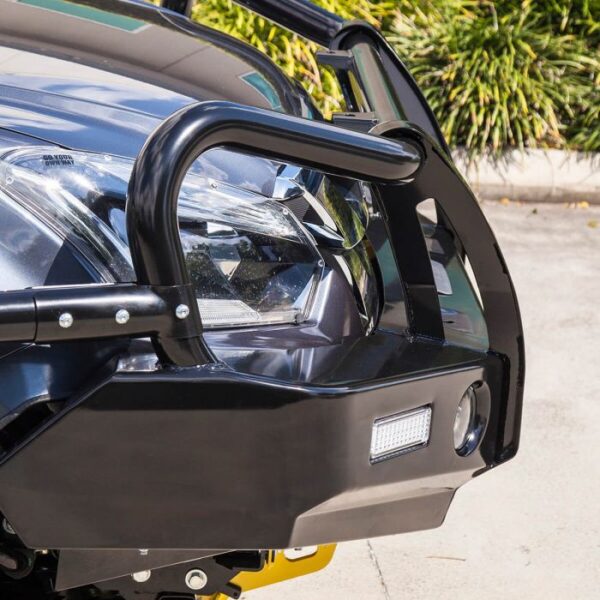

The genuine TJM Outback bull bar range offers exceptional frontal protection for your Isuzu. Our engineers have spent countless hours perfecting the design of these bars to ensure our customers are equipped with one of the finest products in the market. Full wrap cato straps and 63mm outer pipework provides added strength, damage deflection and headlight protection. This TJM Outback bull bar is 4×4 equipped with a steel winch-mount, integrated rated recovery points, LED combination lights, and reinforced T-slot recovery jack points. Option up to the TJM LED Fog Lights for those foggy mornings. It’s ready to work for you with dual aerial mounts and mounting points for installing driving lights. Combining classic styling with premium features, TJM’s Outback bull bar range offers uncompromised frontal protection for your 4×4. Take the Lead with TJM.

Specifications

Material:	Black Powdercoat Steel
Size:	63mm Outer Tube
ADR:	Airbag Compliant. Does not void vehicle manufacturers warranty
Suits:	All models
Winch:	Integrated mount rated to 9500lb/4300kg
Recovery:	Integrated 8000kg Rated Recovery Points, Strengthened Hi Lift Jacking Points
Fog:	Optional Fog Lights 425TJMLEDFG. If harness required for Fog operation (033WHSPOTFOGS)
Indicators:	Combination LED Indicator Park Lights
Lights:	Recessed Light Mount (Width 75mm x 60mm) in top channel, suits single bolt lights only or LED Light Bar please check Light base fits bar recess
Aerial:	Dual Aerial Tabs



Installation

• Required supplementary wiring kit :
• 076WLKIT006: SX, EX models
• 076WLKIT021: LS-M, LS-U, LS-T models
• 076SKITA34F: Winch control box mount kit required to fit TJM Torq Winch
• Recommended Winches: 947TJMTQ95DAA or 947TQBK95DAA 9500lb Synthetic Rope or 947TJMTQ95S 9500lb Steel Rope



Contact us for fitting price and if colour code needed.
