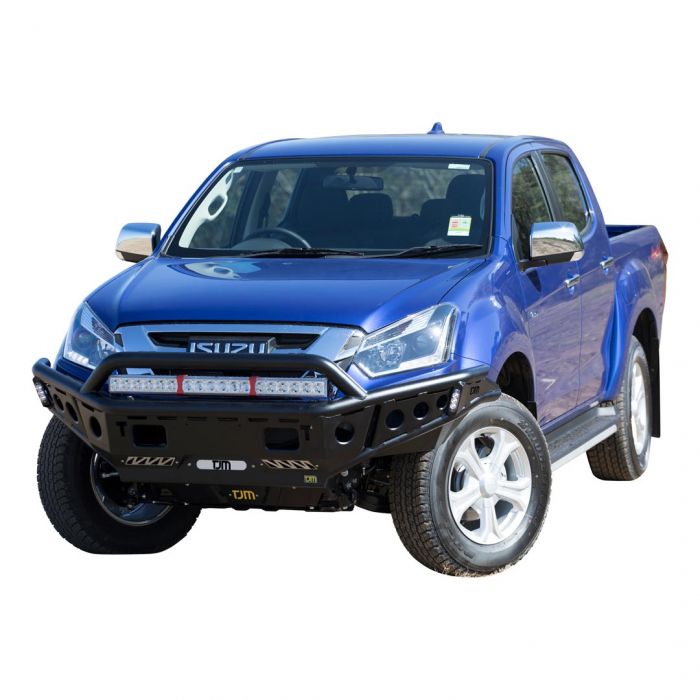

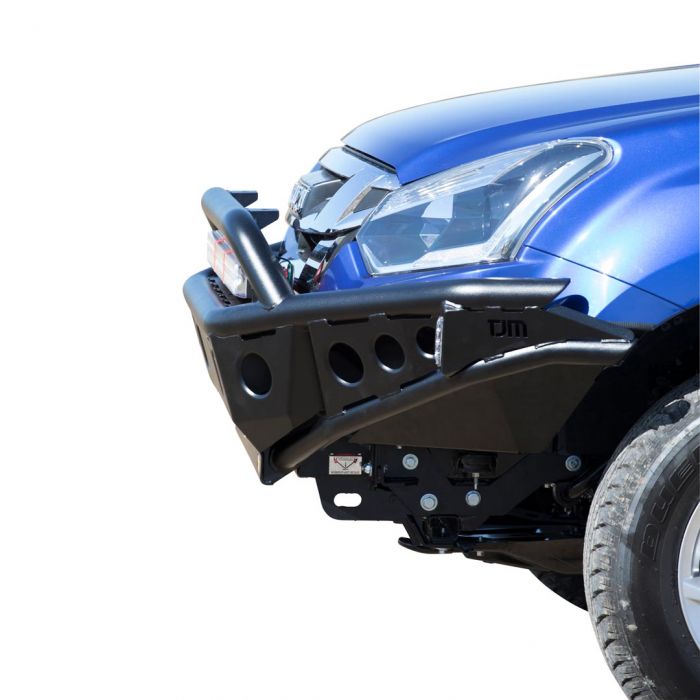

TJM Chaser Bull Bar – Isuzu D-Max 2012-2020 / MU-X 2013-2021
TJM Chaser Bull Bar – Isuzu D-Max 2012-2020 / MU-X 2013-2021
Price: $2,750.00
Sku: 070SB22N34F
Available on back-order
TJM CHASER BULL BAR BLACK STEEL
Compatible Vehicles
- ISUZU D-MAX TF 06/12-01/17 Space C/Chas & Pick Up
- ISUZU D-MAX TF 06/12-01/17 4Dr C/Chas & Pickup
- ISUZU D-MAX TF 02/17-07/20 Space C/Chas & Pick Up
- ISUZU D-MAX TF 02/17-07/20 4Dr C/Chas & Pick Up
- ISUZU MU-X RF 11/13-04/17
- ISUZU MU-X RF 05/17-07/21
Specifications
| Material: | Textured Black Powdercoat Steel |
| Size: | 63mm Upper Tube, 50mm Angled Lower Tube |
| ADR: | Airbag Compliant. Does not void vehicle manufacturer’s warranty |
| Suits: | All models |
| Winch: | Integrated mount rated to 9500lb/4300kg |
| Recovery: | Integrated 8000kg Rated Recovery Points, Strengthened Hi Lift Jacking Points |
| Indicators: | Required model dependent |
| Lights: | Optional Off-road work lights (033CS89LED) Dual mounting tabs on upper hoop to mount drive lights. Suits an LED lightbar up to 900mm long underneath upper hoop |
| Aerial: | Dual Aerial Tabs |
Installation
- Bumper cut fitment
- Chaser bar is supplied with a high-strength winch frame and dual wing guards
- 077SBFUG32P: Optional front underbody guard is recommended fitment
- Required supplementary wiring kit included in price:
- 076WLKIT006: Supplementary wiring kit SX & EX models
- 076WLKIT010: Supplementary wiring kit LS-M, LS-U, LS-T 06/12-01/17 models
- 076WLKIT021: Supplementary wiring kit LS-M, LS-U, LS-T 02/17-07/20
- 076SLKIT001: Indicator Lamp required for SX & EX models
- 076SLKIT002: Park Lamp required for LS-M, LS-U, LS-T models
- 033CS89LED: Optional Off-road Worklights kit
- Recommended Winches: 947TJMTQ95DAA or 947TQBK95DAA 9500lb Synthetic Rope or 947TJMTQ95S 9500lb Steel Rope
Contact us for fitting price and if colour code needed.
