Hardkorr 12V DC Power Distribution Box (Large)

Hardkorr 12V DC Power Distribution Box (Large)

Price: $150.00

Sku: HKPDCBOXLG

This plug-and-play 12V DC Power Distribution Box allows you to easily distribute 12V power from your auxiliary battery. Using its wide range of ports, you can run or charge up to 13 appliances simultaneously.

Easily distribute power from your deep cycle battery.


4 X ANDERSON INPUTS / OUTPUTS
2 X USB OUTPUTS
2 X QC3.0 USB OUTPUTS
2 X USB TYPE-C OUTPUTS
2 X CIGARETTE OUTPUTS
2 X DC BARREL OUTPUTS

This plug-and-play 12V DC Power Distribution Box allows you to easily distribute 12V power from your auxiliary battery. Using its wide range of ports, you can run or charge up to 13 appliances simultaneously. It is suitable for all deep-cycle battery types including AGM, Lithium, Wet, Gel and Calcium.

Constructed of durable ABS plastic and meeting the UL 94V-0 standard for flammability of plastic products, this power box is a high-quality unit that will last for many years.

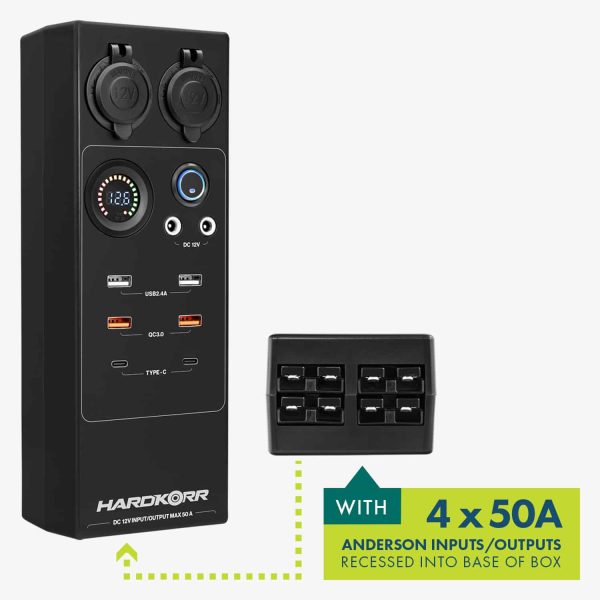

It contains four 50A Anderson-style outlets. One of these is used to connect the power box to the battery, and the other three can be used as outputs or inputs, meaning you can use them to either power appliances with Anderson plug such as fridges, or to connect a DC-DC charger or solar panel to charge the connected battery. All of the Anderson outlets are recessed into the body to minimise the possibility of damage from knocks. It also contains two USB ports, two QC3.0 USB ports, two USB Type-C ports, two cigarette ports and two DC barrel ports, as well as an inbuilt voltmeter.

Mounting bracket included.

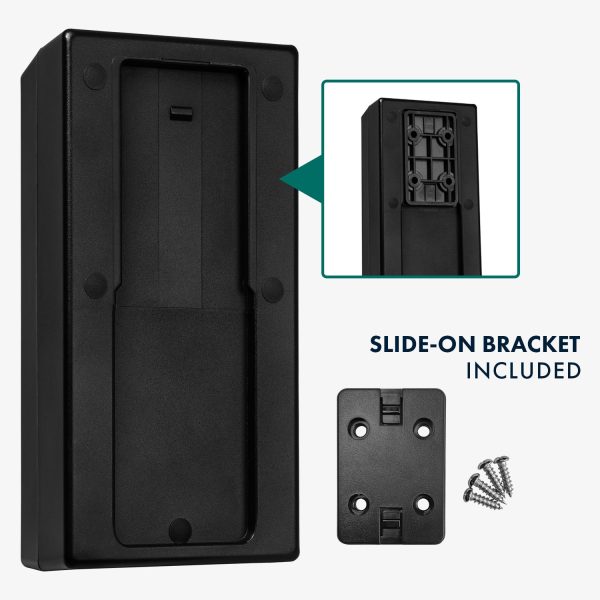

Mounting the power box inside your 4×4 or camper trailer is easy thanks to the included slide-on mounting bracket.

Connect the box to your auxiliary battery by running a cable from the battery terminals to one of the Anderson ports on the underside of the box.

If you want to remove the auxiliary battery from your vehicle (e.g. to use it at camp), you can easily slide the control box off the mounting bracket so you can take it with the battery.

Key features

  • Constructed from UL 94V-0 compliant fire-resistant ABS plastic
  • Multiple port types allows you to connect up to 13 appliances at once
  • Easily plug a solar panel into the control box to charge the connected battery
  • All ports are recessed into the body to reduce likelihood of damage
  • Easily see battery status with large digital display

The Hardkorr guarantee

All Hardkorr products are manufactured using the highest quality materials. We are confident that they are the most durable in the market and will give you many years of reliable service. We stand behind this product with a comprehensive 3-year Australian warranty and a 30-day money back guarantee.

Specifications

Materials ABS plastic (UL 94V-0 compliant)
Box dimensions 90mm (W) x 250mm (H) x 63mm (D)
Suitable battery types Any deep cycle (Lithium, AGM, Calcium, Wet, Gel)
Connection method via Anderson plug (to battery terminals)
Ports 4 x 50A Anderson plug inputs/outputs
2 x 10A cig sockets
2 x 5A DC (barrel)
2 x 2.4A USB-A
2 x 18W QC3.0 USB
2 x 45W USB-C
Ingress Protection IP64 dustproof & waterproof
Operating temperature -10°C to 50°C
Weight 0.9kg

Pack Contents
